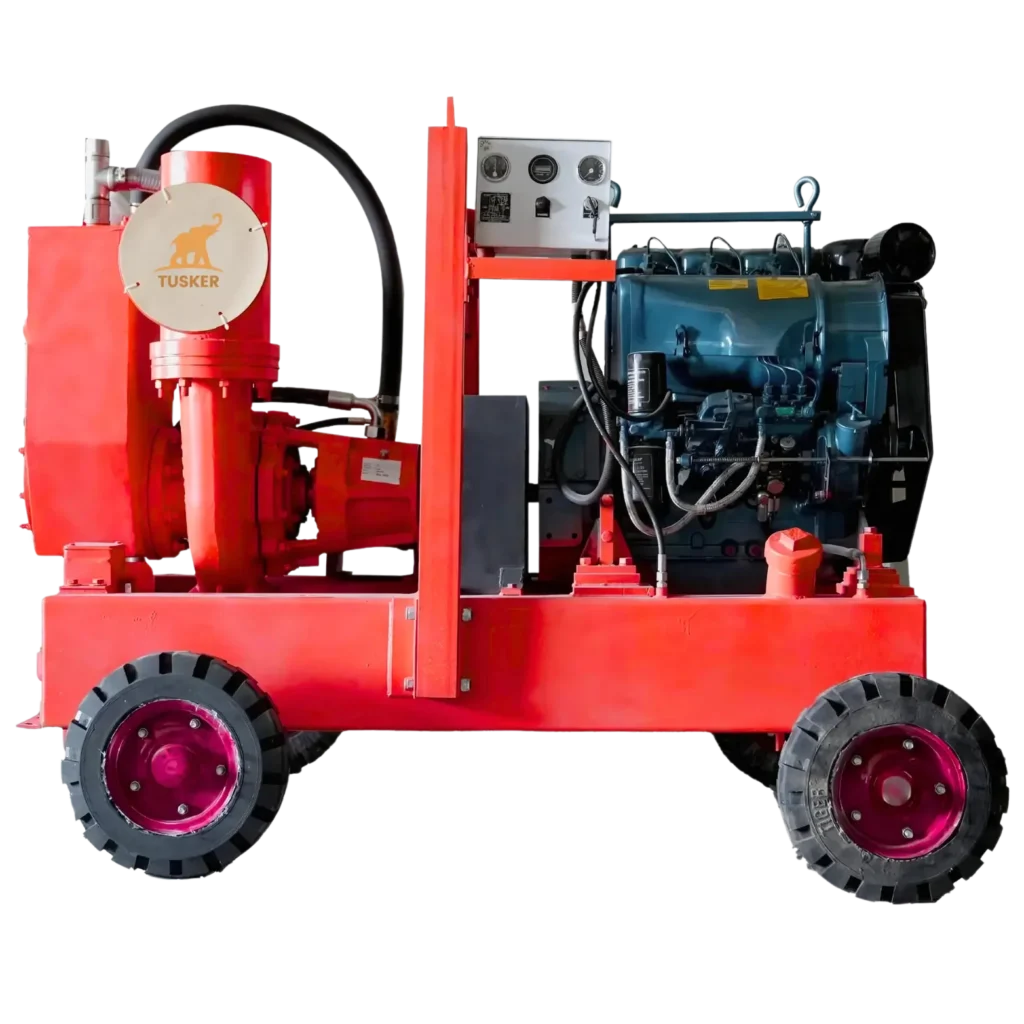

Diesel driven centrifugal pumps

Overview

Dewatering pumps are specialized devices designed to remove excess water from various environments, including construction sites, sewage systems, and irrigation applications. They are crucial for preventing flooding and managing groundwater levels effectively. These pumps can handle a range of liquids, including those containing solids, making them versatile tools in many industries.

GET A QUOTE

Features & Benefits

Easy Maintenance: Most dewatering pumps require minimal upkeep, primarily involving regular checks of oil levels and filters.

Durability: Constructed from high-quality materials such as stainless steel and cast iron, these pumps are designed to withstand harsh conditions and ensure a long operational life.

Versatility: Capable of handling sewage, slurries, and liquids with solids up to 2.0 inches in diameter, these pumps are adaptable to various applications.

Advanced Sealing: Equipped with dry-running high-pressure liquid bath double mechanical seals made from solid silicon carbide, these pumps ensure reliability during operation.

Centrifugal Pump Design: Many models utilize a centrifugal pump with a dry-prime system, which can be coupled with either diesel engines or electric motors for flexible power options.

Customizable Options: Pumps can be tailored to specific customer needs, including different impeller types (closed or open), drive systems (diesel or electric), and mounting configurations (skid-mounted or trailer-mounted).

Technical Specifications

Specification	4″ Pump (Tusker 100)	6″ Pump (Tusker 150)	8″ Pump (Tusker 200)	12″ Pump (Tusker 300)
Max Water Flow	200 m³/hr	350 m³/hr	550 m³/hr	1250 m³/hr
Suction x Discharge	4″ x 4″ (100 mm x 100 mm)	6″ x 6″ (150 mm x 150 mm)	8″ x 8″ (200 mm x 200 mm)	12″ x 12″ (300 mm x 300 mm)
Max Head	40 m	40 m	40 m	30 m
Max Suction Lift	9 m	9 m	9 m	9 m
Max Solid Handling	2″	2″	2″	2″
Engine	Kirloskar HA 394, 3-Cylinder	Kirloskar HA 394, 3-Cylinder	Kirloskar HA 494, 4-Cylinder	Kirloskar HA 694, 6-Cylinder
Engine Capacity	32 HP	38 HP	52 HP	78 HP
Engine Speed	1500 RPM	1800 RPM	1800 RPM	1800 RPM
Fuel Tank Capacity	120 liters	160 liters	183 liters	220 liters
Weight Without Engine	550 kg	550 kg	600 kg	700 kg
Weight With Engine	950 kg	950 kg	1100 kg	1200 kg
Dimensions (L x W x H)	214 x 213 x 153 cm	214 x 213 x 153 cm	214 x 213 x 153 cm	214 x 213 x 153 cm
Container Capacity (20 ft)	6 units	6 units	4 units	2 units
Container Capacity (40 ft)	12 units	12 units	8 units	4 units
Size Range	2″ to 12″ discharge sizes
Flow Rates	Up to 2000 m³/hr (8800 US GPM) depending on model
Head	Up to 150 meters (492 ft) depending on model
