Jetting pumps

Overview

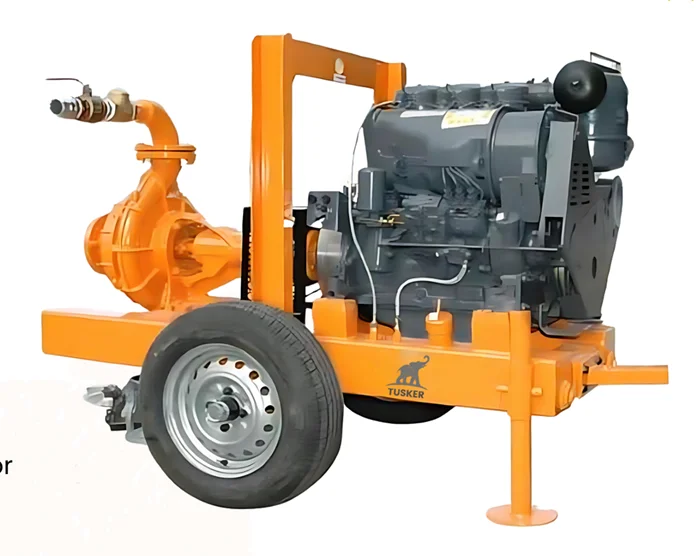

The JP 100 x 50 is a high-pressure jetting pump designed for rigorous applications such as drain cleaning, surface preparation, pipeline jetting, and heavy-duty washing. Constructed from robust materials and engineered for efficiency, this model delivers consistent flow and high-pressure performance needed in demanding industrial, municipal, and commercial environments.

GET A QUOTE

Key Uses & Applications

Pipeline & Sewer Jetting

Effective for clearing blockages, removing sediment, and maintaining sewer lines
High-pressure water stream dislodges debris without chemicals

Industrial Cleaning & Degreasing

Removes stubborn grime from machinery, floors, and equipment
High-impact jetting action reduces cleaning time and labor

Surface Preparation

Prepares surfaces for painting or coating by eliminating rust, old paint, or scale
Achieves a uniform finish crucial for quality coatings

Municipal & Commercial Maintenance

Ideal for large-scale cleaning tasks such as public walkways and building exteriors
Simplifies maintenance duties while minimizing downtime

Product Highlights

Heavy-Duty Construction

Rugged pump housing (often cast iron or ductile iron) handles high-pressure operation
Corrosion-resistant internal components suitable for water with typical contaminants

Efficient Jetting Design

Engineered impeller and volute geometry for high velocity water streams
Rapid debris removal and improved penetration of clogged lines

Durable Mechanical Seals & Bearings

Specially selected for high-pressure applications to ensure extended service life
Seals help prevent water ingress and minimize maintenance downtime

Versatile Mounting & Drive Options

Can be belt-driven or directly coupled to diesel, gas, or electric motors
Skid-mounted or trailer-mounted configurations available depending on requirements

User-Friendly Operation

Simple priming and maintenance procedures reduce operator training needs
Large fill and drain ports allow quick setup and breakdown at the job site

Technical Specifications

Component	Material/Specification
Model	JP 100 x 50
Pump Type	High-Pressure Jetting (Centrifugal)
Inlet (Suction) Diameter	100 mm (4″)
Outlet (Discharge) Diameter	50 mm (2″)
Operating Pressure Range	~10-20 bar (145-290 PSI)
Maximum Flow Rate	~25-40 m³/hr (110-176 GPM)
Total Head (Max)	~100-120 m
Rotation Speed	1,450-2,900 RPM
Pump Casing Material	Cast iron or ductile iron
Impeller Material	Bronze or stainless steel
Mechanical Seal	High-pressure mechanical seal
Bearings	Heavy-duty ball or roller bearings
Dimensions (L x W x H)	~850 x 600 x 700 mm
Dry Weight (Pump Only)	~120-160 kg
