Reliable design helps maintain constant water table depression, preventing costly work stoppages.
Wellpoints are perforated or slotted pipes, typically 2-inch in diameter, designed for use in wellpoint dewatering systems. Fitted with an integrated filter screen, these wellpoints allow water to enter while blocking sand and fine particles. They are installed around an excavation site or foundation pit and connected by a header pipe to a wellpoint vacuum pump. By creating negative pressure (vacuum) in the header, the system draws water from the surrounding soil, effectively lowering the water table to ensure stable working conditions.
With a typical maximum effective suction lift of around 6 meters (due to atmospheric pressure constraints), wellpoint systems remain the go-to method for shallow dewatering applications.
Reduces groundwater levels around trenches, foundations, and basements. Stabilizes the soil and prevents water ingress for safe excavation work.
Highway underpass or tunnel construction in areas with high water tables. Retaining wall installation, bridge piers, and other sub-surface structures.
Maintaining dry conditions to lay sewer lines, water mains, or other buried utilities. Useful in sandy or silty soils prone to water seepage.
Assists in groundwater control during pollution cleanup or site remediation. Helps monitor, collect, or treat contaminated water in a controlled manner.
Slots or perforations prevent sand ingress, minimizing clogging or pump wear. Durable materials extend service life and reduce maintenance intervals.

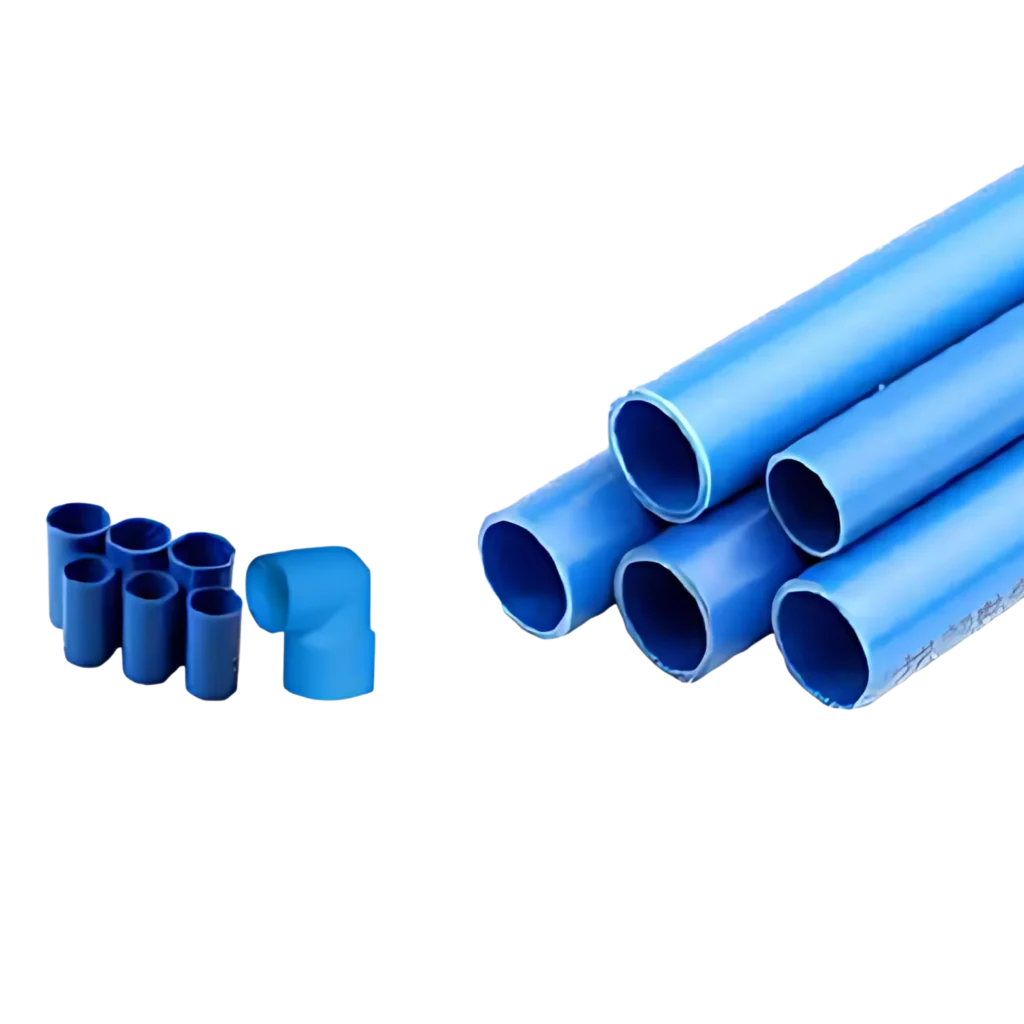

Depending on the model, wellpoints can be made from heavy-duty PVC or steel with anticorrosive coatings. Withstands vacuum pressure and harsh on-site conditions.
Lightweight design (especially in PVC wellpoints) simplifies handling and positioning. Standard 2-inch diameter fits common headers and pump manifolds.
Tailor the wellpoint depth to specific excavation or groundwater requirements. Option for 3 m, 4 m, 6 m, or 7 m ensures compatibility with varying site conditions.
Operates effectively in wellpoint systems where each wellpoint is attached to a common vacuum header pipe. Maximizes flow while minimizing clogging, ensuring consistent dewatering performance.
| Parameter | Details |
|---|---|
| Diameter | 2-inch (50 mm) nominal |
| Lengths Available | 3 m, 4 m, 6 m, 7 m |
| Material | PVC or Steel (galvanized/coated) |
| Filter Screen Type | Slotted or perforated strainer section |
| Max. Vacuum Lift | ~6 m (due to atmospheric pressure limitations) |
| Operating Temperature | ~ -10°C to +60°C (application and material dependent) |
| Connection | Threaded or slip-fit coupling to header pipe |
| Typical Flow Rate | Varies by soil permeability and pump capacity |
| Applications | Dewatering of shallow excavations (generally <6 m) |
Precise slotting or perforation design minimizes soil migration into the system.
Materials resist abrasion and chemical exposure typically encountered in groundwater.
Lightweight construction allows rapid placement using jetting or mechanical methods.
A range of lengths ensures each job can be matched with the right wellpoint specification.
Reliable design helps maintain constant water table depression, preventing costly work stoppages.
