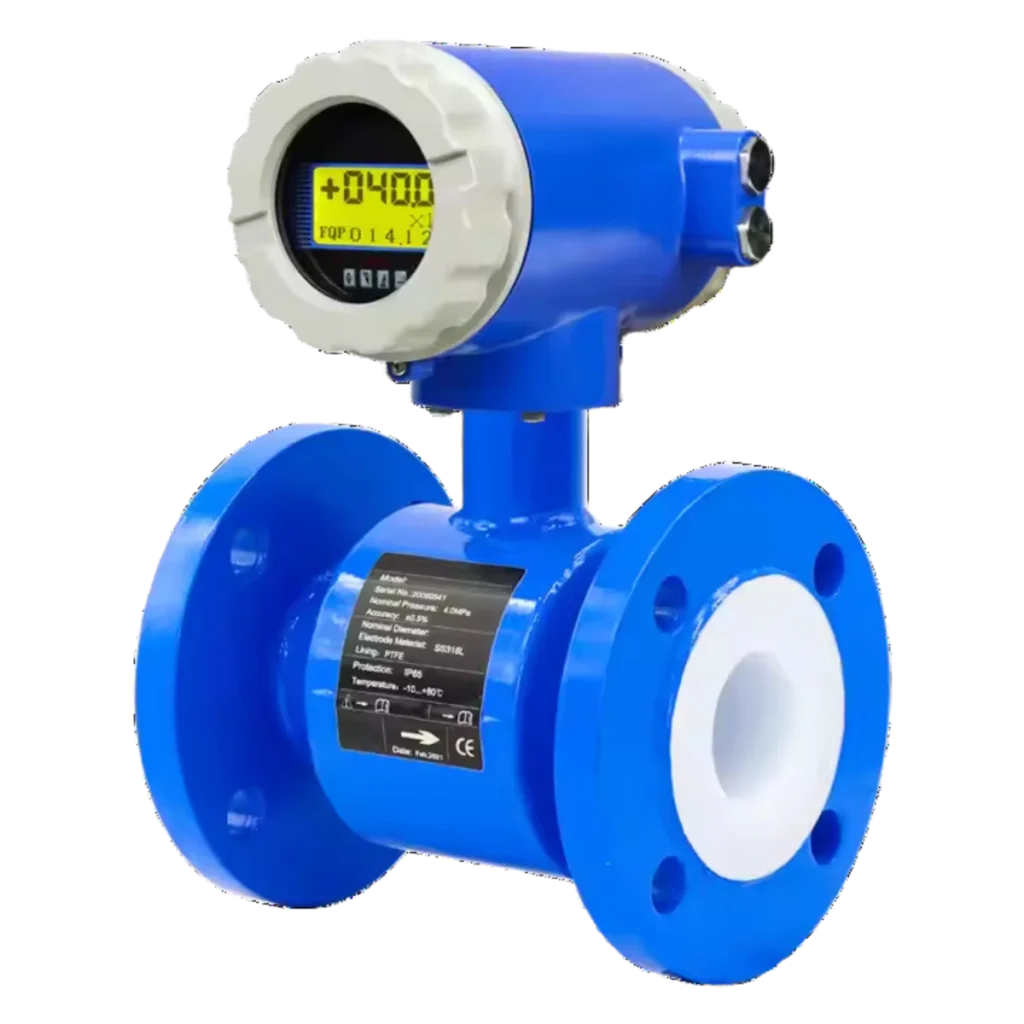

Electromagnetic Water Flow Meters

Overview

Our electromagnetic flow meters utilize advanced technology for precise fluid measurement in various industrial applications. These meters offer reliable performance with no moving parts and minimal maintenance requirements.

Measuring Principle: Based on Faraday’s Law of electromagnetic induction, these meters are ideal for conductive water-based liquids but not suitable for oils, distilled water, or pure alcohol.

GET A QUOTE

M9xx Series Features

Faraday’s Law: Based on electromagnetic induction where conductive fluid flowing through a magnetic field induces proportional voltage
No Moving Parts: Design eliminates mechanical restrictions, resulting in minimal pressure drop and maintenance
Robust Construction: High-quality, corrosion-resistant materials for harsh environments like mining sites and coastal installations
Advanced Electronics: Sophisticated firmware ensuring measurement stability and data integrity even during power failures
Multiple Outputs: Up to six isolated outputs (pulse, frequency, 4-20 mA, relay, RS232, RS485)
Integrated Display: LCD display showing flow data and diagnostics with advanced signal filtering

Converter Models

M910 Standard

High accuracy for water/wastewater applications
Six isolated outputs
2×16 character LCD display
Onboard data logging
Ideal for municipal water supply

M921 Precision

±0.25% reading accuracy
Modbus Protocol support
Empty pipe detection
Temperature measurement
Perfect for chemical/pharmaceutical applications

M930 Battery-Powered

Up to 10-year battery life
Large datalogger with USB
Capacitive buttons & dot matrix display
Max flow tube diameter ~300 mm (12″)
Ideal for remote installations

Applications

Water & Wastewater: Municipal water treatment, distribution, and sewer systems with suspended solids
Food & Beverage: CIP lines, milk, juices, and other conductive liquids with precision control
Chemical & Pharmaceutical: Aggressive fluids requiring advanced material compatibility and high accuracy
Mining & Dewatering: Remote operation with robust design for abrasive slurries and harsh conditions
Irrigation: Large diameter lines in agriculture or canal management with battery-powered options

Technical Specifications

Parameter	Details
Meter Sizes	DN10–DN300 (3/8″–12″); custom larger sizes available
Liner Materials	EPDM, PTFE, Hard Rubber, specialized options
Electrode Materials	SS 316L, Hastelloy C, Titanium, custom alloys
Accuracy	Standard: ±0.5% (M910) High Precision: ±0.25% (M921)
Flow Velocity	0.1–10 m/s (typical range)
Protection Rating	IP65/67/68 (model dependent)
